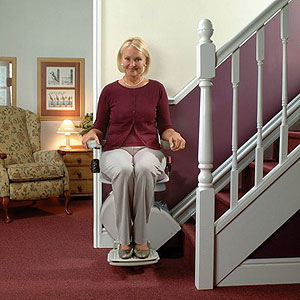

he Savaria K2 straight stairlift features the most compact folded depth on the market, keeping your stairs clear when the lift is not in use. Smooth-riding with a comfortable seat, the K2 stair lift transports you over the barrier of stairs, giving you the freedom to stay in the home you love.

With a 350 lb capacity* and adjustable arm width, the K2 is well-suited to a wide range of comfort needs. Obstruction sensors, a retractable seat belt and overspeed governor all provide added safety features. The lift operates on a battery powered system with built in charging, that allows the lift to operate several times even during a power failure. Visit our photo gallery.

Watch our K2 Stairlift videoSavaria K2 video

Find a local Savaria dealer: click here, or call 1-855-728-2742

*for a stair angle greater than 45 degrees, maximum capacity is 300 lb.

Previous Image
Next Image

info heading

info content


Documents
Features
Options
Techinical information
Documents

The following documents are PDFs that can be downloaded.

Savaria makes every effort to publish accurate information. Specifications and options are subject to change without notice.

K2 Architectural Drawings

Architectural drawings are available here in PDF or DWG format.

Features
Ultra slim: Folded size of only 10.75″, the smallest profile on the market to keep the unit out of the way when not in use

Quiet, smooth-riding operation: From the rack and pinion drive system

Battery operated: Built-in charging on the top and bottom of the rail so the chair can be used several times even through a power failure

LED status lights: To advise of any issues

Obstacle sensor system: On the carriage and footrest to stop the chair if it meets an obstacle

Safety features: Swivel and lock seat at top landing, retractable seat belt, anti-slip footrest, obstacle sensors

Easy operation: Includes 2 infrared remote controls plus toggle switch on arm rest

Comfortable and durable seat: With width-adjustable arms up to 20″ wide

Fast installation: To enjoy your stair lift quicker

Warranty: 36 months parts. Please see complete details here.

Options

Optional Configurations: For installation on either side of the stairs.

Rail extension brackets: To create no intrusion at top landing.

Other Options: Continuous charge system, flip-up rail for bottom landing, emergency stop button and radio frequency remote controls.

Techinical information

Applications: Residential, indoor, straight-run stairway

Standard Capacity: 350 lb* (159 kg)

Maximum Travel: 32 ft (9.75 m)

Travel speed: 15 ft/min (0.08 m/s)

Motor: 1/3 hp, 24 VDC power that charges on standard household power

Fold-up width: 10.75″ (27.3 cm)

Fold-out width: 21.5″ (54.6 cm)

Range of incline: 30˚ to 55˚

*for a stair angle greater than 45 degrees, maximum capacity is 300 lb.
